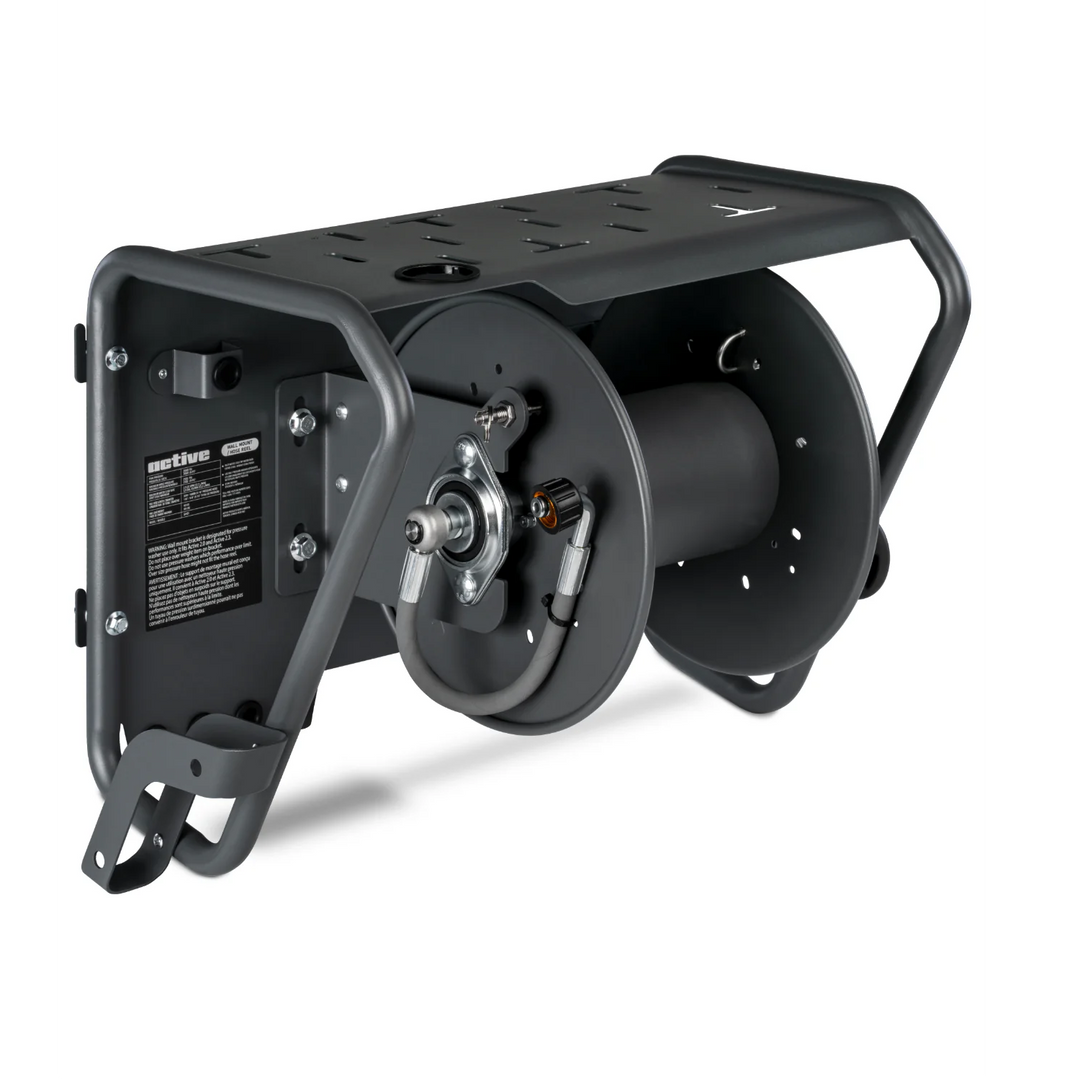

Active™ Hose Reel Wall Mount System

Active™ Hose Reel Wall Mount System

Regular price$379.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

The Active pressure washer hose reel wall mount solution is an all-in-one garage solution that keeps pressure washer setups organized, accessible, and clutter-free.

Not only is it suited for Active products program but can also be a suitable upgrade kit for all pressure washer users when it comes to enhancing their car wash experience.

Key Features:

  • Systemic car wash at home: The Active hose reel wall mount system enables you to have a decluttered setup all in one place, allowing you use and put away your pressure washer system with ease.
  • Organized hose and accessory management: A storage slot for all accessories from your nozzles, foam cannon, gun and lance. The included reel also accommodates up to 100’ for 3/8 and 5/16 hoses
  • Safe and easy to mount: The provided backing plate comes with 16” stud spacing and easy latch system which allows you to safely mount the solution to your garage whether on studs or concrete.
  • Compatible with many pressure washers and accessories: Since the accessory holders come with ¼” rubber grommet plugs, it has universal product storage capabilities. And for the pressure washer there is a slot system that should allow you to mount any solution for your garage.
  • Optimized for Active systems: Despite universal adaptability, the system is optimized for used with Active 2.0 and 2.3 pressure washing solution and the Active accessory solution.

Note: This item ships FREE (Lower 48 United States)

What’s the max rating for the hose reel and wall mount solution?

  • The hose reel valves has a max rating of 3000 peak pressure, 2100 PSI operating pressure and 3.5 GPM max flow rate, within limit for most industrial automotive pressure washers.

What if I encounter leaks in the hose reel wall mount solution?

  • The hose reel is completely rebuildable. Active carries all parts from O-rings to valves which can be replaced once worn out.

What is included in the hose reel wall mount solution?

  • The hose reel wall mount solution comes with a backing plate with 16” stud spacings, the main frame with hose reel for 100’ hose. And a jumper hose to connect to pressure washer.

What pressure washers can be mounted on the hose reel wall mount solution?

  • Most automotive pressure washers can be mounted on the plate with a max weight rating of 88lbs for the pressure washer.

User Manual

Hose reel

  • Inlet fitting: 3/8” QC female coupler
  • Outlet fitting: M22x1.5-14
  • Extension hose pre-installed
  • Reel rotation lock: release lock pin before turning the reel
  • Hand crank: customer need install hand crank and lock by pin
  • Hose clamp: customer needs to make adjustment to secure hose
  • Stainless steel (304) reel valve

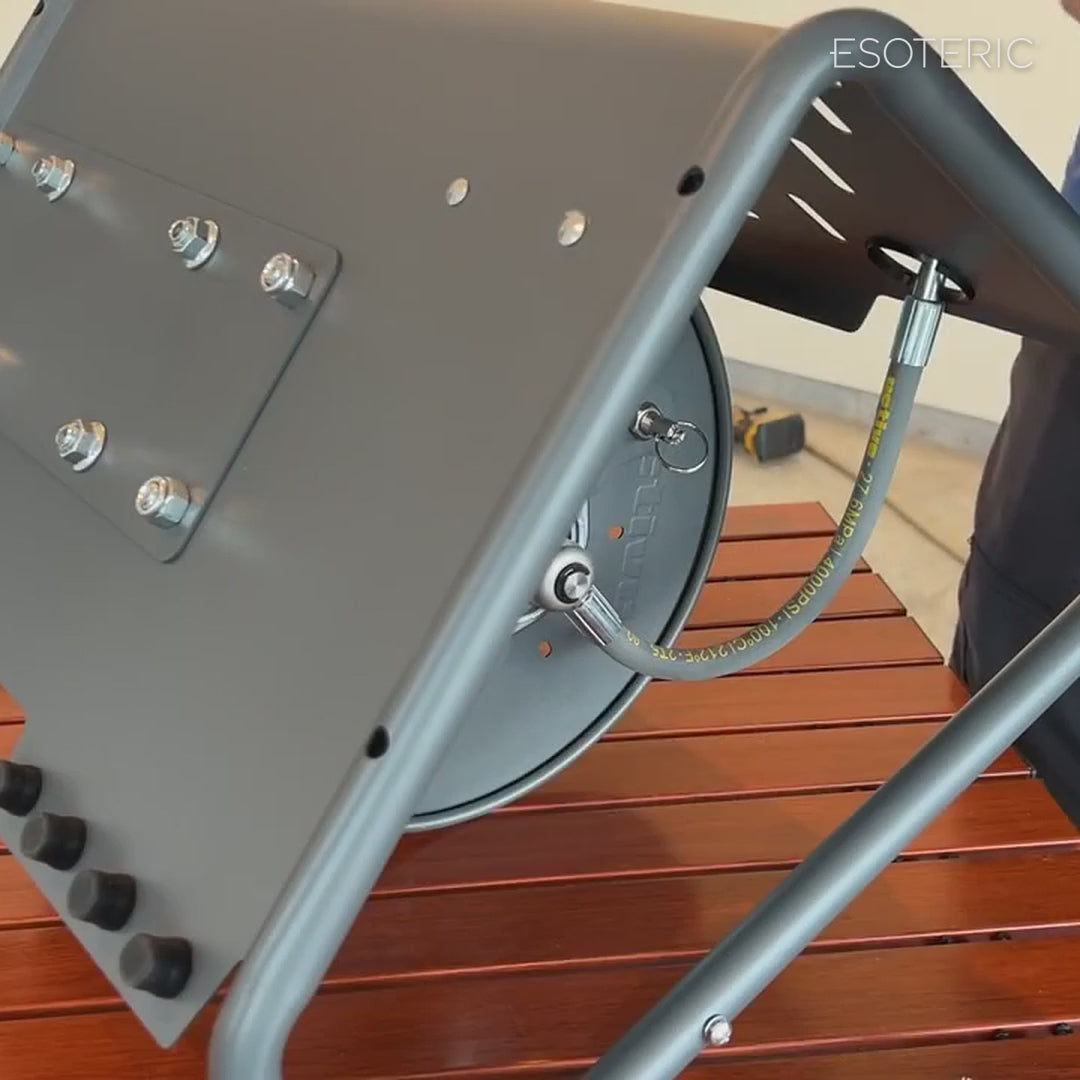

Metal frame

  • Hose reel is pre-installed on frame
  • Customer installation is required for wall mount mode
  • Customer installation required for gun holder and fasten by screw
  • Customer adjustment is required for hose clip

Tip rest seat

  • 4 pcs rubber grommets pre-attached on rear wall

Foam cannon rest seat

  • 1pc rubber grommet pre-attached on mounting bracket

Wand rest seat

  • 1pc rubber grommet pre-attached on mounting bracket

Extension hose

  • 5/16” rubber hose, 340mm in length
  • M22x1.5-14 connector for pressure washer
  • Female fitting for jumper hose male fitting (SST304)

Hardware

  • 4pcs 6x30 mm screws to fasten mounting plate on the wall
  • 4pcs M8x 20mm bolts to secure wall mount to mounting plate
  • 2pcs M5x14 bolt to secure gun holder on frame

Accessories

  • Hand crank with lock pin
  • Mounting plate
  • Gun holder
  • Hardware kit

The Active hose reel wall mount solution comes with a 2-year end user warranty
